Model

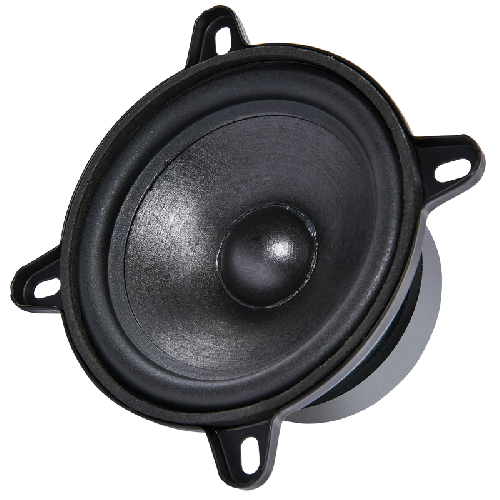

Celestion AF4010
Rating
DIAM
4"
FS(Hz)
104.7
VAS(l)
2.1
QTS
0.81
PWR(W)
70
SPL(dB)
85.9
IMP(Ohm)
16x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
104.7
Vas(l)
2.1
Qts
0.807
Qms
5.3
Qes
0.951
Bl(Tm)
6
Mms(gr)
5
Cms(mm/N)
0.47
Rms(kg/s)
0.61
Le(mH)
0
Re(Ohm)
10.4
Sd(sq.mm)
5675
Vd(l)
0.009
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
70
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
84.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
101
Cutout Diameter (mm)
92
Mounting Depth (mm)
111
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
