Model

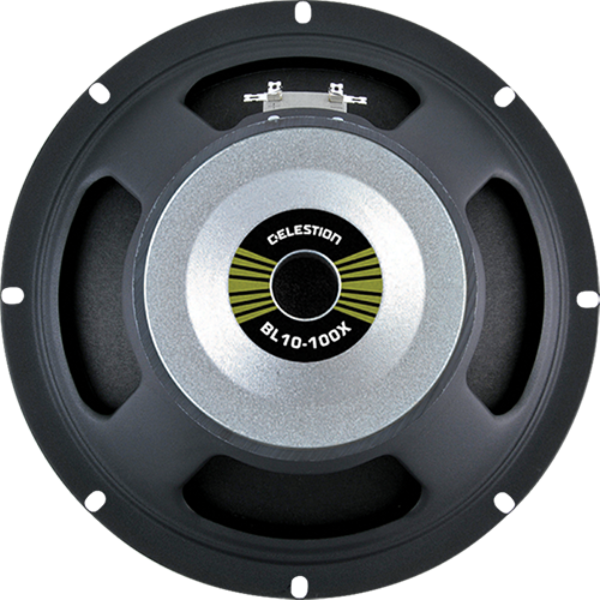

Celestion BL10-100X
Rating
DIAM
10"
FS(Hz)
74.4
VAS(l)
25.1
QTS
0.53
PWR(W)
200
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
74.4
Vas(l)
25.1
Qts
0.532
Qms
2.88
Qes
0.653
Bl(Tm)
12
Mms(gr)
29
Cms(mm/N)
0.148
Rms(kg/s)
4.88
Le(mH)
0
Re(Ohm)
6.7
Sd(sq.mm)
34580
Vd(l)
0.121
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
229
Mounting Depth (mm)
107
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
