Model

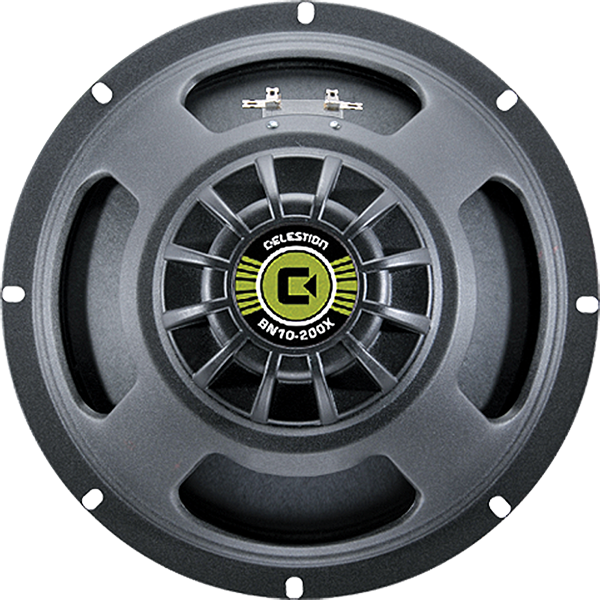

Celestion BN10-200X
Rating
DIAM
10"
FS(Hz)
50.7
VAS(l)
52.1
QTS
0.27
PWR(W)
400
SPL(dB)
95.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
50.7
Vas(l)
52.1
Qts
0.274
Qms
3.7
Qes
0.297
Bl(Tm)
14.3
Mms(gr)
32
Cms(mm/N)
0.306
Rms(kg/s)
2.79
Le(mH)
0.63
Re(Ohm)
5.9
Sd(sq.mm)
34648
Vd(l)
0.132
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.2
Sensitivity(dB) 1-W
95.4
Sensitivity(dB) 2.8-V
96.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
257
Cutout Diameter (mm)
229
Mounting Depth (mm)
112
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
