Model

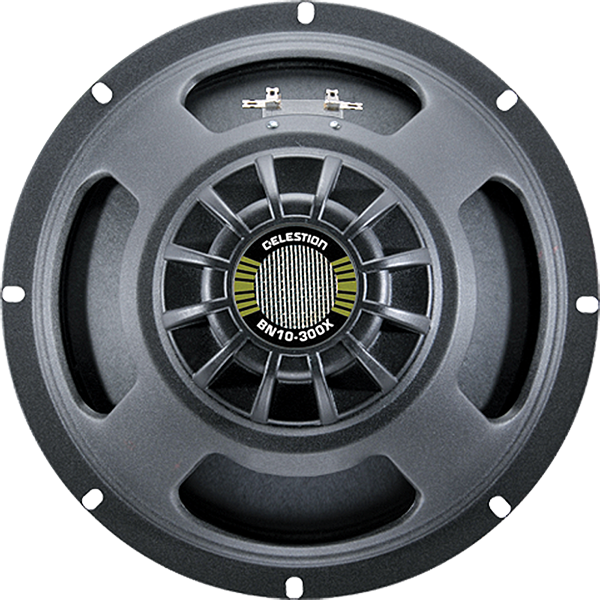

Celestion BN10-300X(4)
Rating
DIAM
10"
FS(Hz)
64.2
VAS(l)
29.2
QTS
0.43
PWR(W)
300
SPL(dB)
93.8
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
64.2
Vas(l)
29.2
Qts
0.43
Qms
3.33
Qes
0.494
Bl(Tm)
9.4
Mms(gr)
36
Cms(mm/N)
0.172
Rms(kg/s)
4.338
Le(mH)
0.32
Re(Ohm)
3
Sd(sq.mm)
34598
Vd(l)
0.138
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.51
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
98
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
256
Cutout Diameter (mm)
229
Mounting Depth (mm)
112
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
