Model

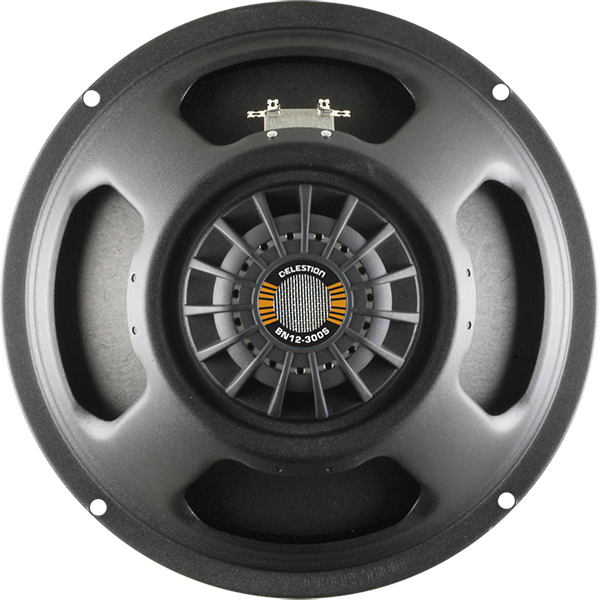

Celestion BN12-300S(8)
Rating
DIAM
12"
FS(Hz)
62.1
VAS(l)
50
QTS
0.32
PWR(W)
600
SPL(dB)
97
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
62.1
Vas(l)
50
Qts
0.319
Qms
2.7
Qes
0.361
Bl(Tm)
17
Mms(gr)
52
Cms(mm/N)
0.125
Rms(kg/s)
7.46
Le(mH)
0.51
Re(Ohm)
5.1
Sd(sq.mm)
53107
Vd(l)
0.133
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
3.2
Sensitivity(dB) 1-W
97
Sensitivity(dB) 2.8-V
99
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
309
Cutout Diameter (mm)
283
Mounting Depth (mm)
132
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
