Model

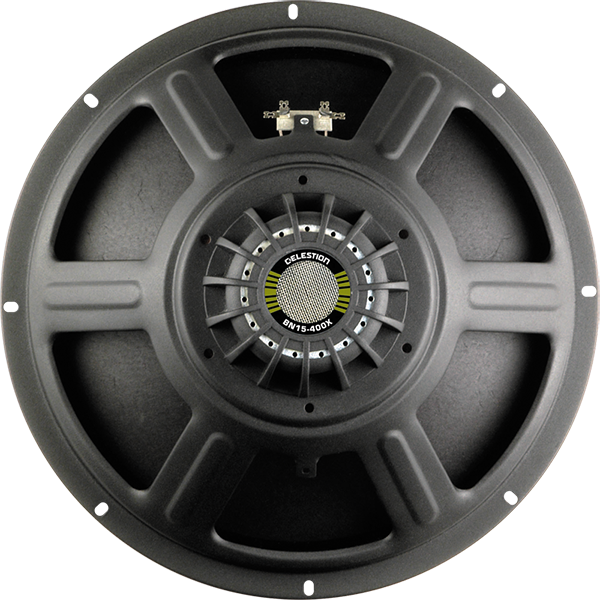

Celestion BN15-400X
Rating
DIAM
15"
FS(Hz)
35.1
VAS(l)
253
QTS
0.53
PWR(W)
400
SPL(dB)
94.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35.1
Vas(l)
253
Qts
0.527
Qms
5.07
Qes
0.588
Bl(Tm)
12.9
Mms(gr)
84
Cms(mm/N)
0.244
Rms(kg/s)
3.667
Le(mH)
0
Re(Ohm)
5.3
Sd(sq.mm)
85504
Vd(l)
0.342
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
400
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
351
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
