Model

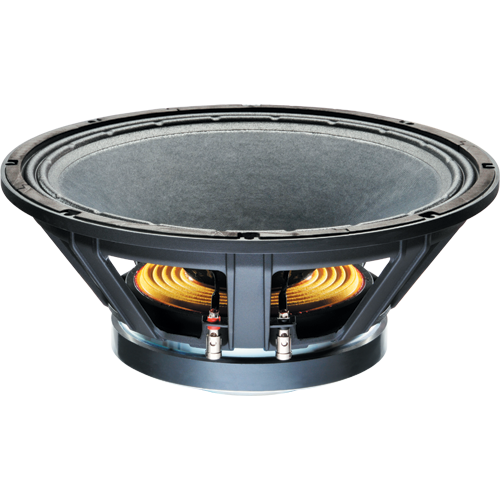

Celestion FTR15-4080F
Rating
DIAM
15"
FS(Hz)
38
VAS(l)
163.1
QTS
0.25
PWR(W)
2400
SPL(dB)
97
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
163.1
Qts
0.249
Qms
2.9
Qes
0.273
Bl(Tm)
23.5
Mms(gr)
112
Cms(mm/N)
0.16
Rms(kg/s)
9.34
Le(mH)
1.48
Re(Ohm)
5.7
Sd(sq.mm)
84779
Vd(l)
0.509
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
3.16
Sensitivity(dB) 1-W
97
Sensitivity(dB) 2.8-V
98.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
351
Mounting Depth (mm)
170
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
