Model

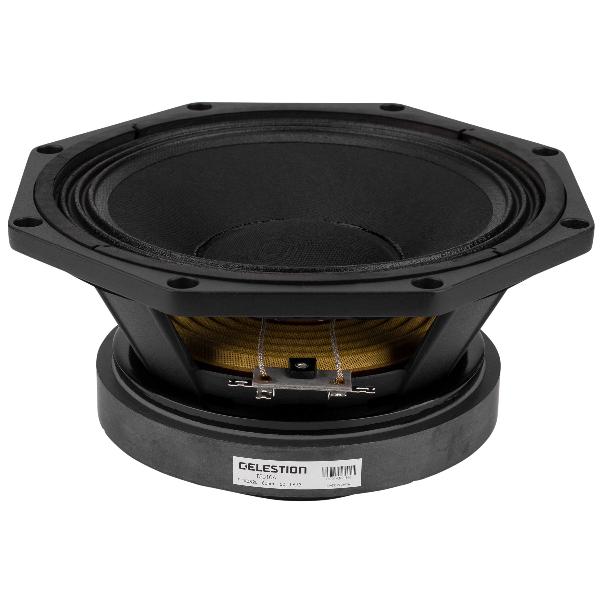

Celestion FTX0820
Rating
DIAM
8"
FS(Hz)
63.9
VAS(l)
21.4
QTS
0.23
PWR(W)
300
SPL(dB)
95.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
63.9
Vas(l)
21.4
Qts
0.23
Qms
4.7
Qes
0.242
Bl(Tm)
14.4
Mms(gr)
26
Cms(mm/N)
0.238
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4.8
Sd(sq.mm)
25167
Vd(l)
0.05
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
187
Mounting Depth (mm)
114
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
