Model

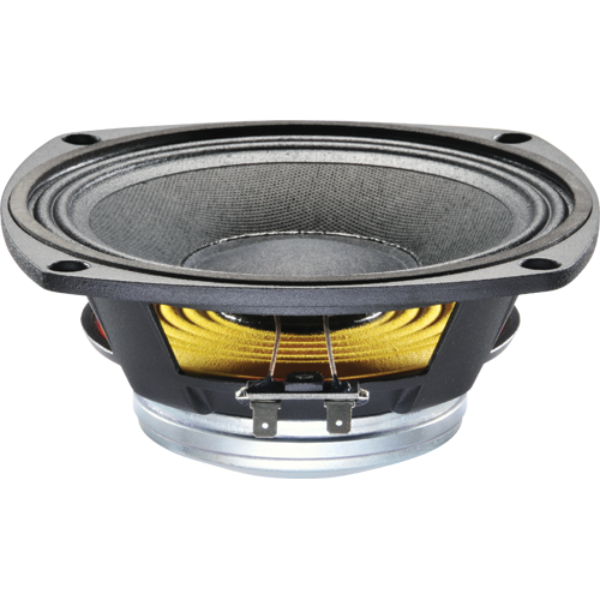

Celestion NTR06-1705B
Rating
DIAM
6"
FS(Hz)
109.6
VAS(l)
4.1
QTS
0.44
PWR(W)
300
SPL(dB)
91.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
109.6
Vas(l)
4.1
Qts
0.439
Qms
2.632
Qes
0.527
Bl(Tm)
10
Mms(gr)
13
Cms(mm/N)
0.163
Rms(kg/s)
3.38
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
13252
Vd(l)
0.033
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
150
Mounting Depth (mm)
71
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
