Model

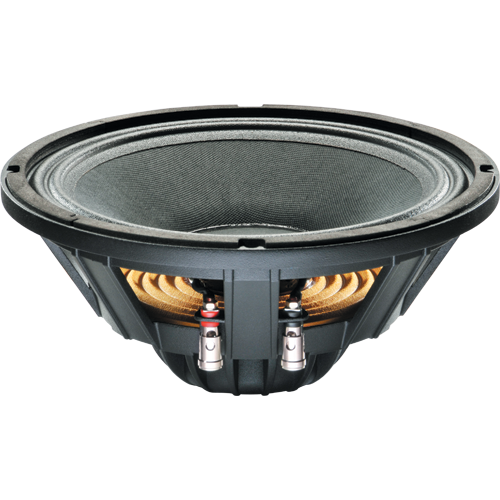

Celestion NTR10-2520E
Rating
DIAM
10"
FS(Hz)
56
VAS(l)
30
QTS
0.31
PWR(W)
500
SPL(dB)
93.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
56
Vas(l)
30
Qts
0.312
Qms
3.244
Qes
0.345
Bl(Tm)
15.9
Mms(gr)
45
Cms(mm/N)
0.18
Rms(kg/s)
4.87
Le(mH)
0.68
Re(Ohm)
5.4
Sd(sq.mm)
34280
Vd(l)
0.163
X-max(mm)
5
X-mech(mm)
8
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.47
Sensitivity(dB) 1-W
93.7
Sensitivity(dB) 2.8-V
95.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
260
Cutout Diameter (mm)
232
Mounting Depth (mm)
1113
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
