Model

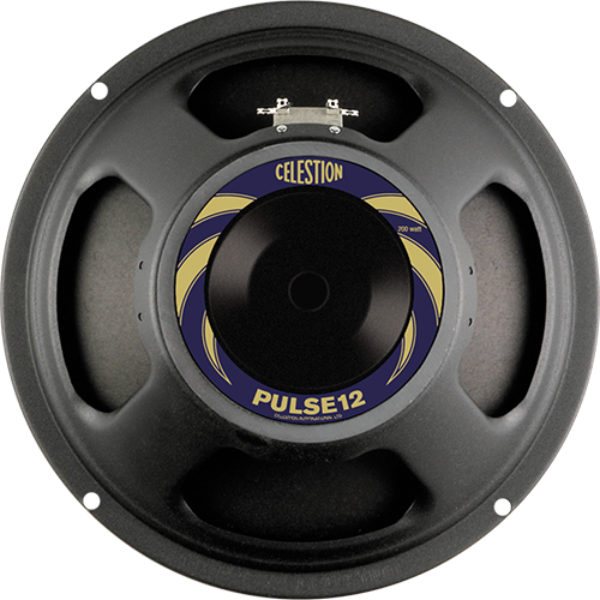

Celestion PULSE12
Rating
DIAM
12"
FS(Hz)
45
VAS(l)
104.8
QTS
0.42
PWR(W)
400
SPL(dB)
94.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
104.8
Qts
0.42
Qms
2.7
Qes
0.49
Bl(Tm)
12.7
Mms(gr)
41
Cms(mm/N)
0.307
Rms(kg/s)
4.26
Le(mH)
1
Re(Ohm)
6.9
Sd(sq.mm)
49054
Vd(l)
0.186
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.88
Sensitivity(dB) 1-W
94.7
Sensitivity(dB) 2.8-V
95.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
309
Cutout Diameter (mm)
285
Mounting Depth (mm)
130
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
