Model

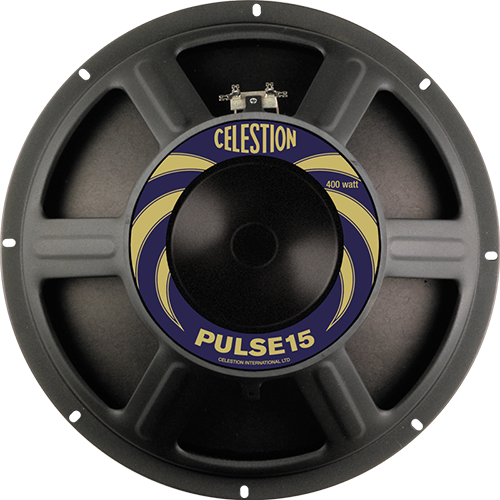

Celestion PULSE15
Rating
DIAM
15"
FS(Hz)
35.7
VAS(l)
246.7
QTS
0.43
PWR(W)
0
SPL(dB)
95.6
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35.7
Vas(l)
246.7
Qts
0.431
Qms
4.75
Qes
0.474
Bl(Tm)
15.1
Mms(gr)
83
Cms(mm/N)
0.24
Rms(kg/s)
3.93
Le(mH)
0.87
Re(Ohm)
5.8
Sd(sq.mm)
85530
Vd(l)
0.406
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
0
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.28
Sensitivity(dB) 1-W
95.6
Sensitivity(dB) 2.8-V
97
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
385
Cutout Diameter (mm)
351
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
