Model

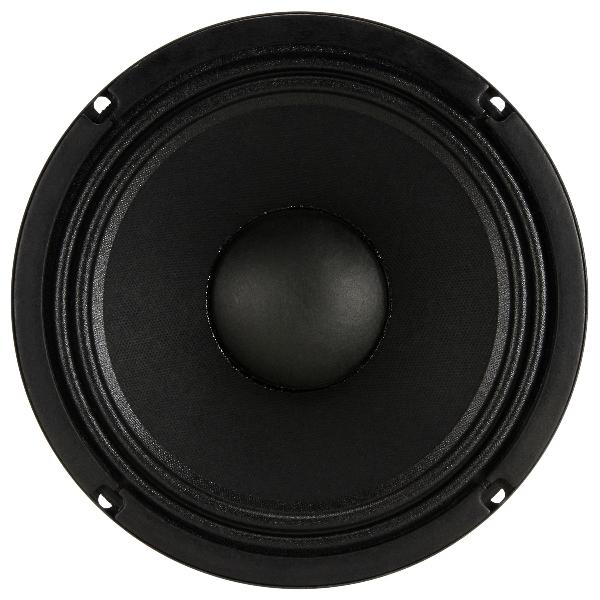

Celestion TF-0818
Rating
DIAM
8"
FS(Hz)
95
VAS(l)
12.6
QTS
0.44
PWR(W)
400
SPL(dB)
95.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
95
Vas(l)
12.6
Qts
0.44
Qms
3.83
Qes
0.5
Bl(Tm)
11.4
Mms(gr)
18
Cms(mm/N)
0.17
Rms(kg/s)
2.62
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
22860
Vd(l)
0.08
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
183
Mounting Depth (mm)
99
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Vented, BP6
