Model

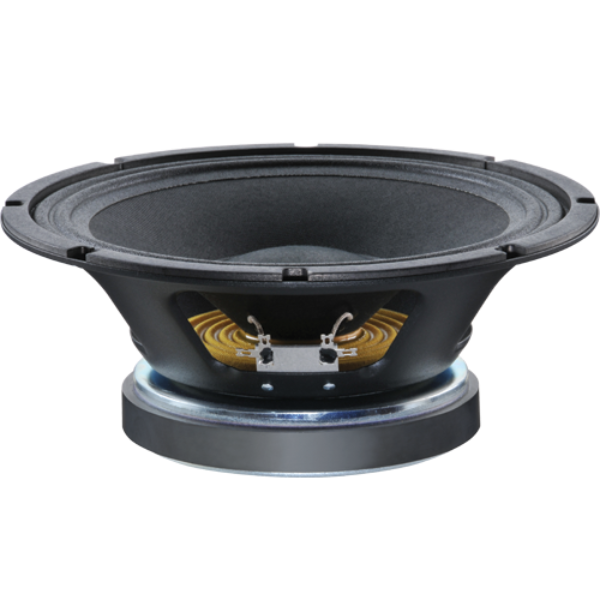

Celestion TF1020
Rating
DIAM
10"
FS(Hz)
60.9
VAS(l)
37.5
QTS
0.32
PWR(W)
300
SPL(dB)
95.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
60.9
Vas(l)
37.5
Qts
0.32
Qms
2.853
Qes
0.361
Bl(Tm)
13.8
Mms(gr)
31
Cms(mm/N)
0.221
Rms(kg/s)
4.15
Le(mH)
0.59
Re(Ohm)
5.8
Sd(sq.mm)
34566
Vd(l)
0.069
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.26
Sensitivity(dB) 1-W
95.5
Sensitivity(dB) 2.8-V
96.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
256
Cutout Diameter (mm)
229
Mounting Depth (mm)
110
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
