Model

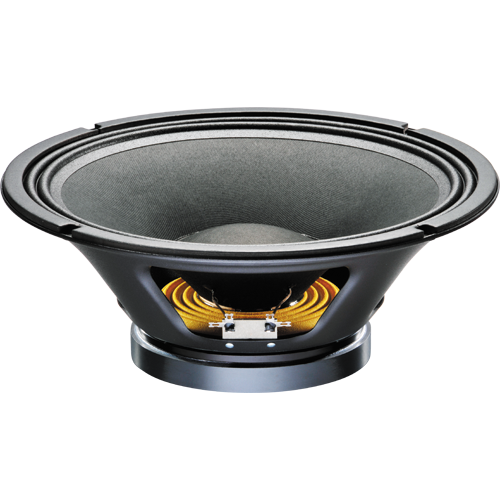

Celestion TF1230
Rating
DIAM
12"
FS(Hz)
59
VAS(l)
51.3
QTS
0.52
PWR(W)
700
SPL(dB)
94
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
59
Vas(l)
51.3
Qts
0.515
Qms
2.4
Qes
0.652
Bl(Tm)
13
Mms(gr)
57
Cms(mm/N)
0.13
Rms(kg/s)
8.6
Le(mH)
1.31
Re(Ohm)
5.2
Sd(sq.mm)
52723
Vd(l)
0.253
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.56
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
95.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
309
Cutout Diameter (mm)
283
Mounting Depth (mm)
140
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
