Model

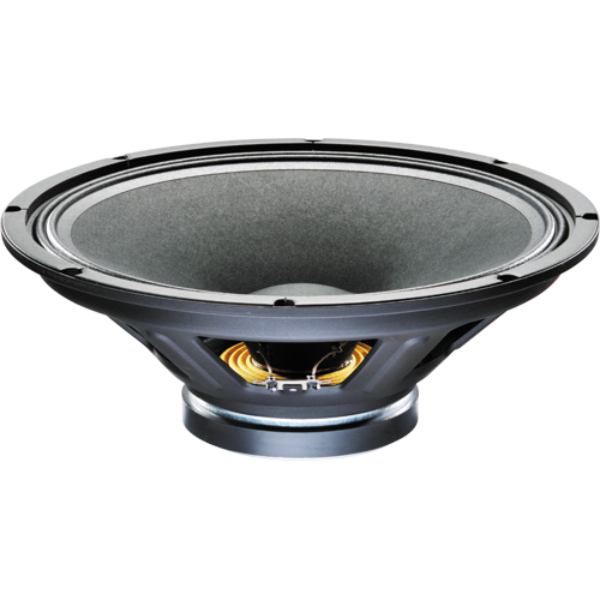

Celestion TF1525E
Rating
DIAM
15"
FS(Hz)
49.8
VAS(l)
128.2
QTS
0.5
PWR(W)
600
SPL(dB)
96.6
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
49.8
Vas(l)
128.2
Qts
0.5
Qms
7.12
Qes
0.53
Bl(Tm)
17.7
Mms(gr)
82
Cms(mm/N)
0.12
Rms(kg/s)
3.62
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
80384
Vd(l)
0.281
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
163
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
