Model

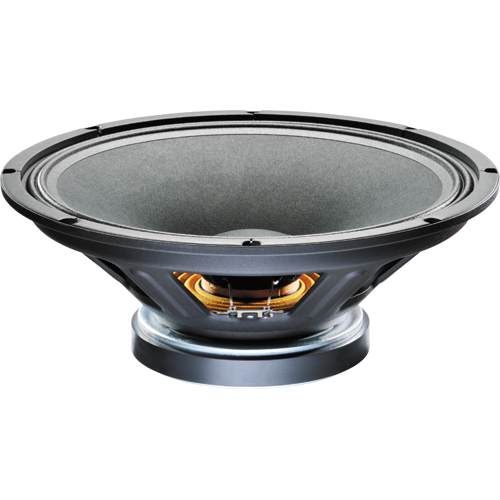

Celestion TF1530
Rating
DIAM
15"
FS(Hz)
45
VAS(l)
141.2
QTS
0.38
PWR(W)
800
SPL(dB)
96.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
141.2
Qts
0.38
Qms
4.2
Qes
0.42
Bl(Tm)
18.7
Mms(gr)
92
Cms(mm/N)
0.136
Rms(kg/s)
6.13
Le(mH)
1.08
Re(Ohm)
5.7
Sd(sq.mm)
84329
Vd(l)
0.169
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.95
Sensitivity(dB) 1-W
96.7
Sensitivity(dB) 2.8-V
98.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
381
Cutout Diameter (mm)
352
Mounting Depth (mm)
163
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
