Model

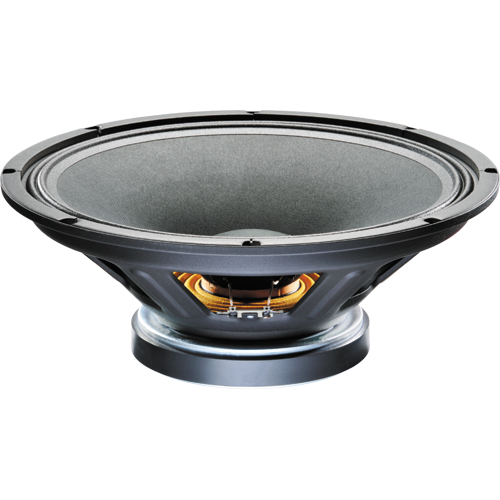

Celestion TF1530E
Rating
DIAM
15"
FS(Hz)
41
VAS(l)
181.7
QTS
0.34
PWR(W)
800
SPL(dB)
97.1
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
41
Vas(l)
181.7
Qts
0.344
Qms
4.042
Qes
0.376
Bl(Tm)
17.3
Mms(gr)
86
Cms(mm/N)
0.175
Rms(kg/s)
5.496
Le(mH)
0.827
Re(Ohm)
5.1
Sd(sq.mm)
85319
Vd(l)
0.683
X-max(mm)
8
X-mech(mm)
17
General Parameters
Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
3.21
Sensitivity(dB) 1-W
97.1
Sensitivity(dB) 2.8-V
99.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
385
Cutout Diameter (mm)
352
Mounting Depth (mm)
161
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
