Model

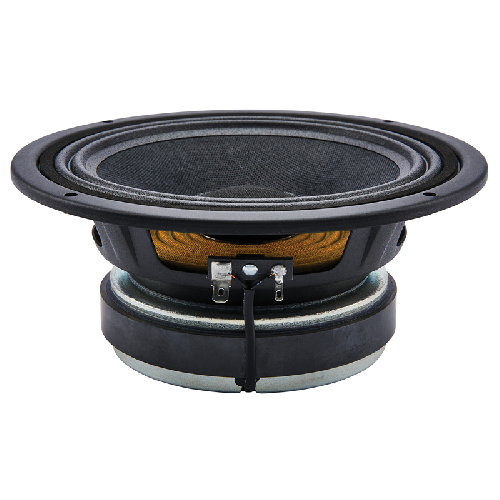

Celestion TFX0615
Rating
DIAM
6"
FS(Hz)
96.8
VAS(l)
7.2
QTS
0.38
PWR(W)
300
SPL(dB)
93.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
96.8
Vas(l)
7.2
Qts
0.376
Qms
3
Qes
0.429
Bl(Tm)
9.8
Mms(gr)
13
Cms(mm/N)
0.21
Rms(kg/s)
2.58
Le(mH)
0.46
Re(Ohm)
5.4
Sd(sq.mm)
15527
Vd(l)
0.047
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.46
Sensitivity(dB) 1-W
93.7
Sensitivity(dB) 2.8-V
95.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
178
Cutout Diameter (mm)
145
Mounting Depth (mm)
76
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
