Model

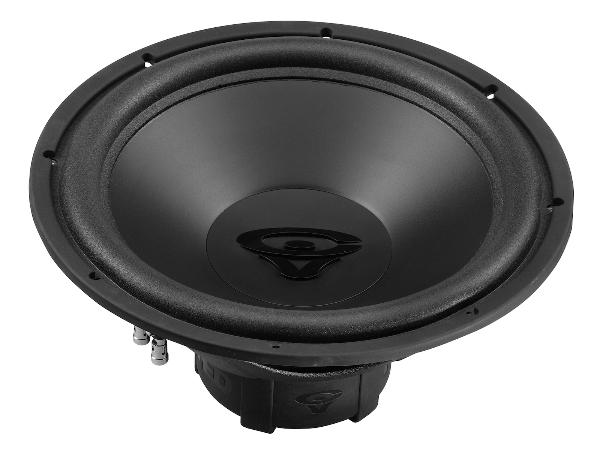

Cerwin Vega Mobile HED-15.2
Rating
DIAM
15"
FS(Hz)
22
VAS(l)
253
QTS
0.63
PWR(W)
600
SPL(dB)
87.5
IMP(Ohm)
2x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
22
Vas(l)
253
Qts
0.63
Qms
4.8
Qes
0.73
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
300
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
94.2
Mounting Information
Speaker Displacement (l)
4.1
Total Diameter (mm)
0
Cutout Diameter (mm)
350
Mounting Depth (mm)
191
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
