Model

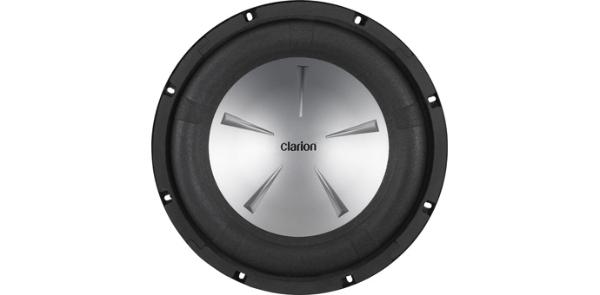

Clarion SRW1285
Rating
DIAM
12"
FS(Hz)
30.1
VAS(l)
62.6
QTS
0.81
PWR(W)
750
SPL(dB)
84.6
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.1
Vas(l)
62.6
Qts
0.81
Qms
8.1
Qes
0.9
Bl(Tm)
13.6
Mms(gr)
137
Cms(mm/N)
0.204
Rms(kg/s)
3.2
Le(mH)
1.4
Re(Ohm)
6.4
Sd(sq.mm)
45900
Vd(l)
0.427
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
750
RMS Power(W.)
375
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.6
Sensitivity(dB) 2.8-V
85.6
Mounting Information
Speaker Displacement (l)
2.9
Total Diameter (mm)
314
Cutout Diameter (mm)
298
Mounting Depth (mm)
158
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
