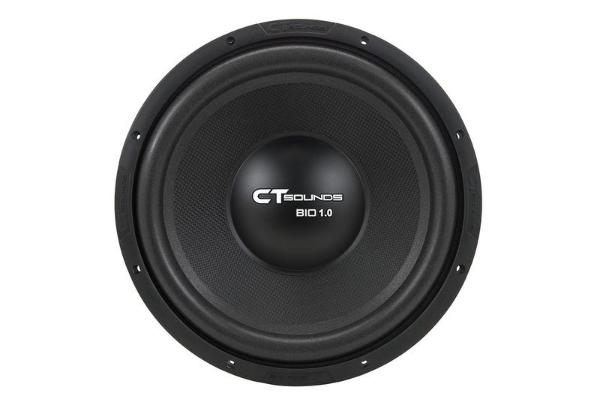

CT Sounds BIO 1.0 12
CT Sounds BIO 1.0 12
Model

CT Sounds BIO 1.0 12

Rating
DIAM
12"
FS(Hz)
30.1
VAS(l)
91.9
QTS
0.53
PWR(W)
300
SPL(dB)
88
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
30.1
Vas(l)
91.9
Qts
0.525
Qms
3.94
Qes
0.606
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
6
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.55
Total Diameter (mm)
0
Cutout Diameter (mm)
278
Mounting Depth (mm)
122
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
