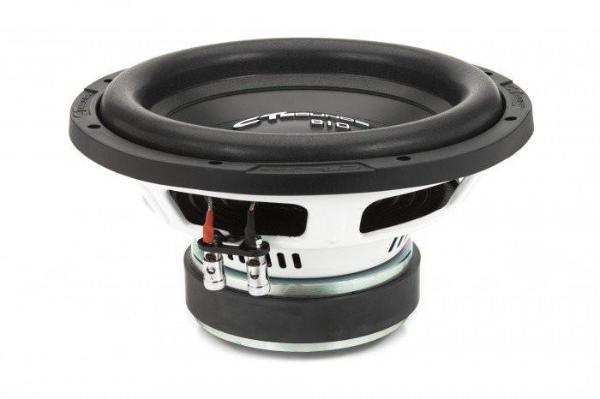

CT Sounds BIO 2.0 10 D2
CT Sounds BIO 2.0 10 D2
Model

CT Sounds BIO 2.0 10 D2

Rating
DIAM
10"
FS(Hz)
37.5
VAS(l)
22.7
QTS
0.5
PWR(W)
500
SPL(dB)
86.2
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
37.5
Vas(l)
22.7
Qts
0.497
Qms
5.68
Qes
0.545
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
7
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.83
Total Diameter (mm)
0
Cutout Diameter (mm)
229
Mounting Depth (mm)
130
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
