Model

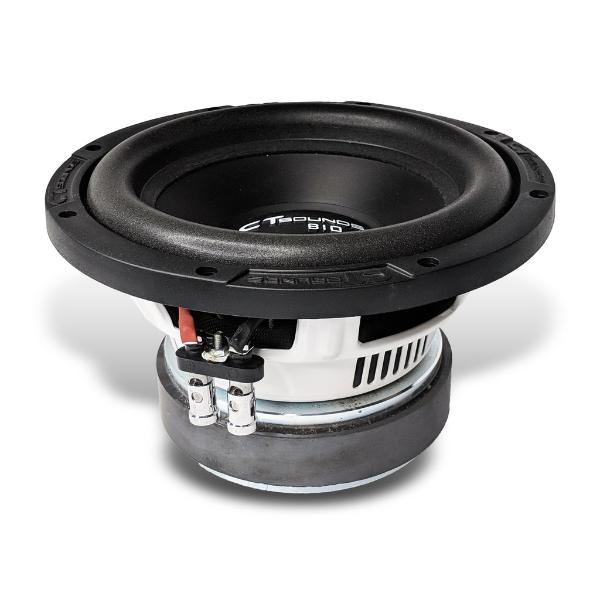

CT Sounds BIO 2.0 8 D4
Rating
DIAM
8"
FS(Hz)
45.9
VAS(l)
10.1
QTS
0.41
PWR(W)
300
SPL(dB)
85.4
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45.9
Vas(l)
10.1
Qts
0.412
Qms
8.6
Qes
0.433
Bl(Tm)
17.5
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
213
Cutout Diameter (mm)
183
Mounting Depth (mm)
114
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
