Model

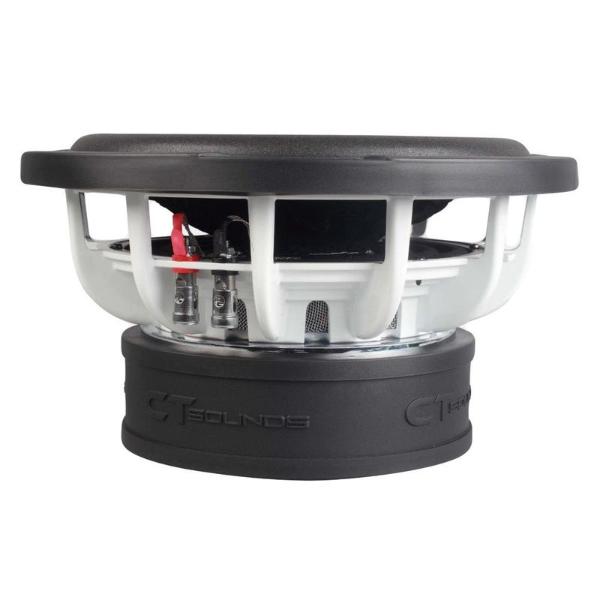

CT Sounds HYDRO 10 D4
Rating
DIAM
10"
FS(Hz)
39
VAS(l)
15.6
QTS
0.55
PWR(W)
1200
SPL(dB)
84.9
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
15.6
Qts
0.55
Qms
5.1
Qes
0.616
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
145
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
