Model

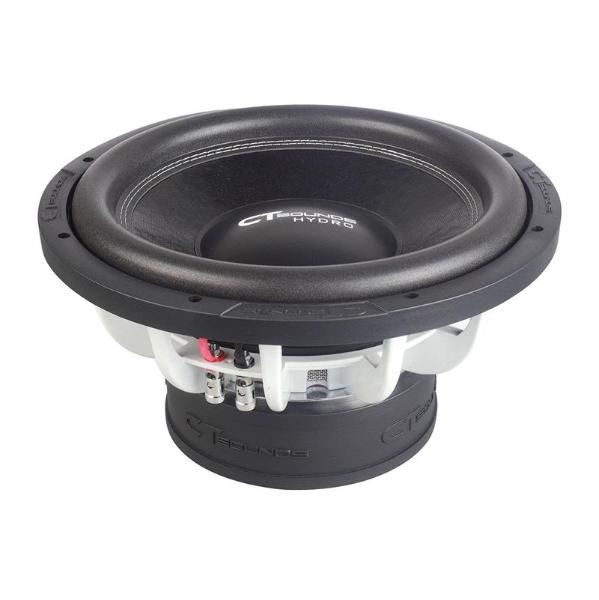

CT Sounds HYDRO 12 D4
Rating
DIAM
12"
FS(Hz)
38.1
VAS(l)
35.4
QTS
0.54
PWR(W)
1200
SPL(dB)
86.9
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38.1
Vas(l)
35.4
Qts
0.54
Qms
4.5
Qes
0.614
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
