Model

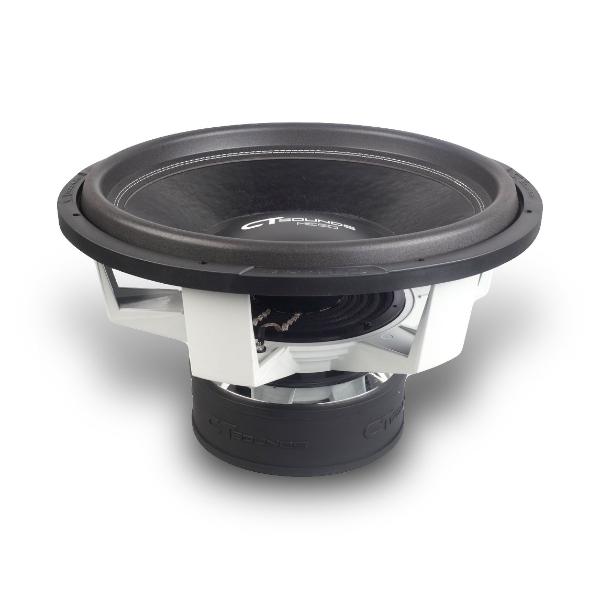

CT Sounds MESO 18
Rating
DIAM
18"
FS(Hz)
33
VAS(l)
120
QTS
0.59
PWR(W)
2500
SPL(dB)
89.9
IMP(Ohm)
1x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
120
Qts
0.593
Qms
5.101
Qes
0.671
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
2500
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.62
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
7.1
Total Diameter (mm)
470
Cutout Diameter (mm)
419
Mounting Depth (mm)
244
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
