Model

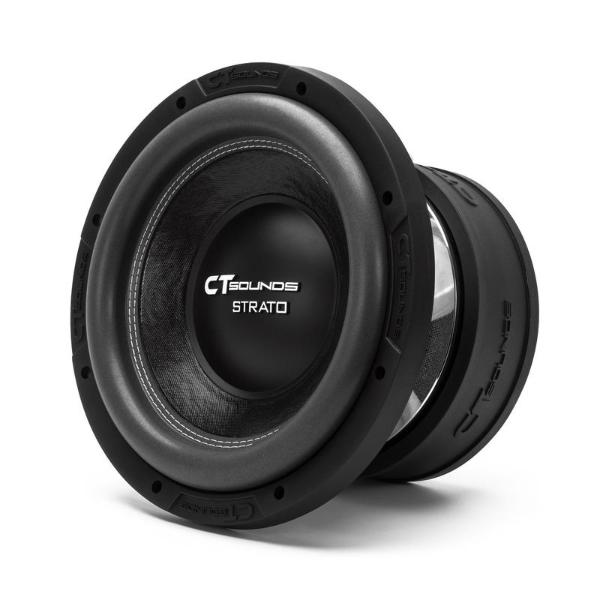

CT Sounds STRATO 10 D1
Rating
DIAM
10"
FS(Hz)
45.1
VAS(l)
8
QTS
0.66
PWR(W)
1600
SPL(dB)
85
IMP(Ohm)
1x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45.1
Vas(l)
8
Qts
0.662
Qms
4.686
Qes
0.771
Bl(Tm)
0
Mms(gr)
244
Cms(mm/N)
0.051
Rms(kg/s)
14.767
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
33329
Vd(l)
0.433
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
