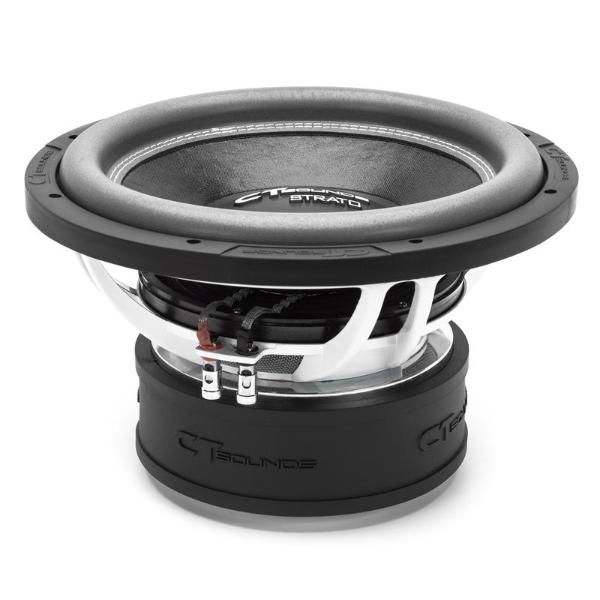

CT Sounds STRATO 12 D2
CT Sounds STRATO 12 D2
Model

CT Sounds STRATO 12 D2

Rating
DIAM
12"
FS(Hz)
38.6
VAS(l)
27.4
QTS
0.51
PWR(W)
1600
SPL(dB)
86.4
IMP(Ohm)
2x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
38.6
Vas(l)
27.4
Qts
0.514
Qms
6.594
Qes
0.557
Bl(Tm)
0
Mms(gr)
233
Cms(mm/N)
0.073
Rms(kg/s)
8.566
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
51471
Vd(l)
0.669
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
5.1
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
173
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
