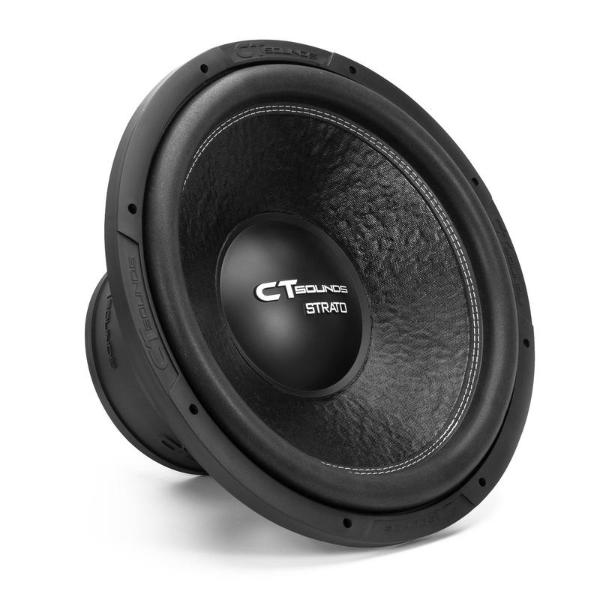

CT Sounds STRATO 15 D1
CT Sounds STRATO 15 D1
Model

CT Sounds STRATO 15 D1

Rating
DIAM
15"
FS(Hz)
31.4
VAS(l)
74.7
QTS
0.61
PWR(W)
1600
SPL(dB)
87.2
IMP(Ohm)
1x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
31.4
Vas(l)
74.7
Qts
0.606
Qms
5.593
Qes
0.68
Bl(Tm)
0
Mms(gr)
347
Cms(mm/N)
0.074
Rms(kg/s)
12.247
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
84496
Vd(l)
1.098
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
7.5
Total Diameter (mm)
0
Cutout Diameter (mm)
358
Mounting Depth (mm)
201
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
