Model

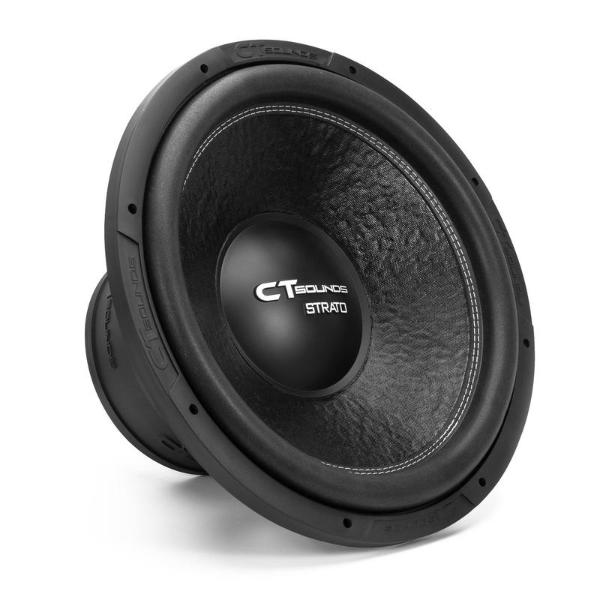

CT Sounds STRATO 15 D2
Rating
DIAM
15"
FS(Hz)
31.7
VAS(l)
77.6
QTS
0.54
PWR(W)
1600
SPL(dB)
88
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
31.7
Vas(l)
77.6
Qts
0.544
Qms
5.382
Qes
0.605
Bl(Tm)
0
Mms(gr)
327
Cms(mm/N)
0.077
Rms(kg/s)
12.116
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
84496
Vd(l)
1.098
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
7.5
Total Diameter (mm)
0
Cutout Diameter (mm)
358
Mounting Depth (mm)
201
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
