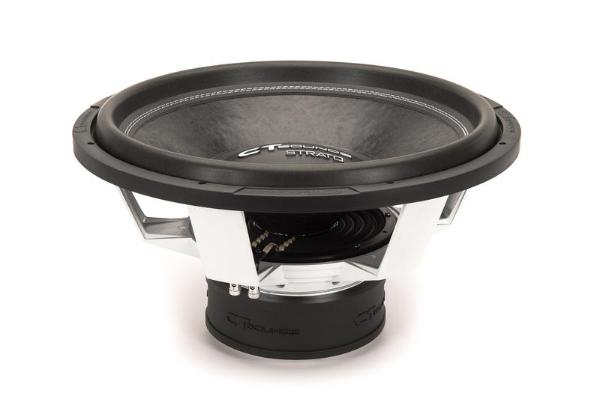

CT Sounds STRATO 18 D2
CT Sounds STRATO 18 D2
Model

CT Sounds STRATO 18 D2

Rating
DIAM
18"
FS(Hz)
34.8
VAS(l)
115.8
QTS
0.59
PWR(W)
1600
SPL(dB)
90.6
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
34.8
Vas(l)
115.8
Qts
0.587
Qms
6.74
Qes
0.643
Bl(Tm)
0
Mms(gr)
402
Cms(mm/N)
0.052
Rms(kg/s)
13.048
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
125700
Vd(l)
1.634
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
10.65
Total Diameter (mm)
0
Cutout Diameter (mm)
424
Mounting Depth (mm)
229
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
