Model

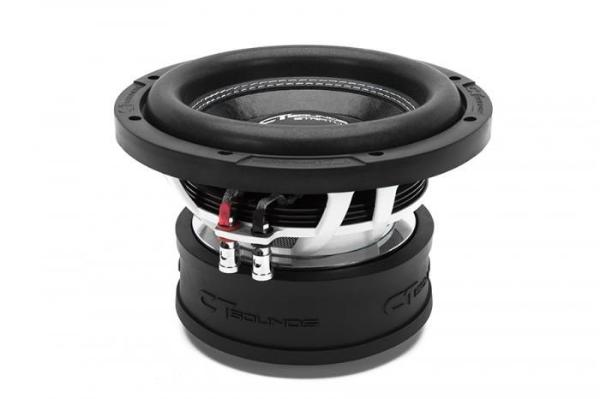

CT Sounds STRATO 8 D2
Rating
DIAM
8"
FS(Hz)
48
VAS(l)
7
QTS
0.51
PWR(W)
600
SPL(dB)
83.2
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
7
Qts
0.508
Qms
4.42
Qes
0.574
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
0
Cutout Diameter (mm)
186
Mounting Depth (mm)
135
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
