Model

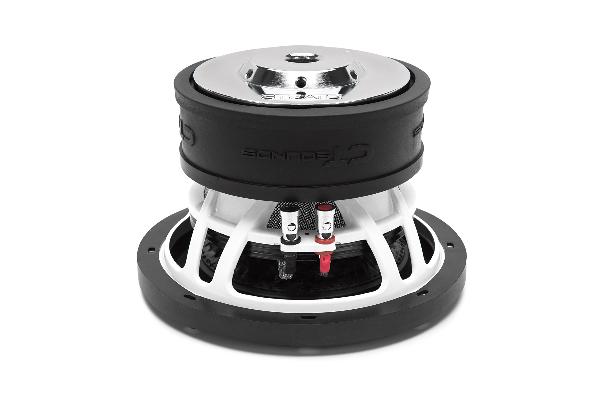

CT Sounds STRATO 8 D4
Rating
DIAM
8"
FS(Hz)
47.7
VAS(l)
8.1
QTS
0.64
PWR(W)
600
SPL(dB)
82.6
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
47.7
Vas(l)
8.1
Qts
0.64
Qms
4.81
Qes
0.74
Bl(Tm)
7.7
Mms(gr)
91
Cms(mm/N)
0.122
Rms(kg/s)
5.688
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
21642
Vd(l)
0.271
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
0
Cutout Diameter (mm)
185
Mounting Depth (mm)
133
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
