Model

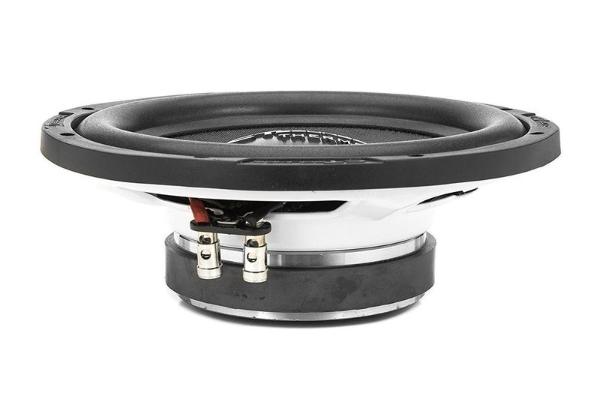

CT Sounds THERMO 10 D4
Rating
DIAM
10"
FS(Hz)
47.4
VAS(l)
22.3
QTS
0.52
PWR(W)
600
SPL(dB)
88
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
47.4
Vas(l)
22.3
Qts
0.522
Qms
5.046
Qes
0.582
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.124
Total Diameter (mm)
0
Cutout Diameter (mm)
229
Mounting Depth (mm)
90
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
