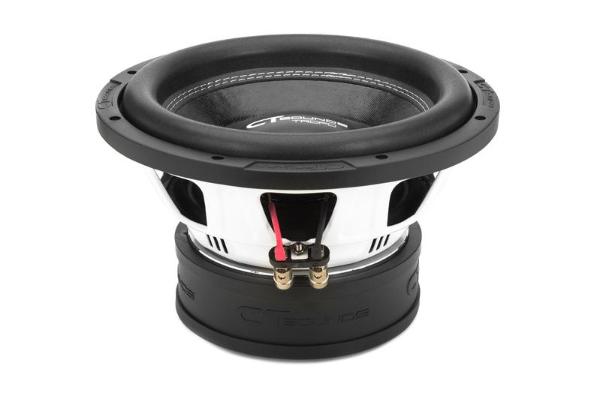

CT Sounds TROPO 12 D2
CT Sounds TROPO 12 D2
Model

CT Sounds TROPO 12 D2

Rating
DIAM
12"
FS(Hz)
33
VAS(l)
32.5
QTS
0.5
PWR(W)
900
SPL(dB)
85.2
IMP(Ohm)
4x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
33
Vas(l)
32.5
Qts
0.501
Qms
6.034
Qes
0.546
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.4
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
163
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
