Model

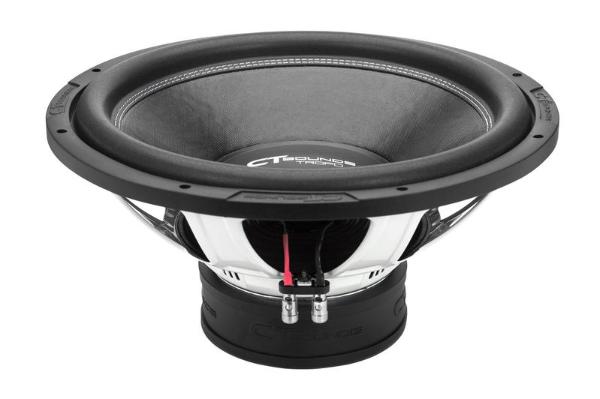

CT Sounds TROPO 15 D2
Rating
DIAM
15"
FS(Hz)
33.7
VAS(l)
96.2
QTS
0.56
PWR(W)
900
SPL(dB)
89.3
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33.7
Vas(l)
96.2
Qts
0.565
Qms
3.62
Qes
0.669
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
0
Cutout Diameter (mm)
361
Mounting Depth (mm)
188
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
