Model

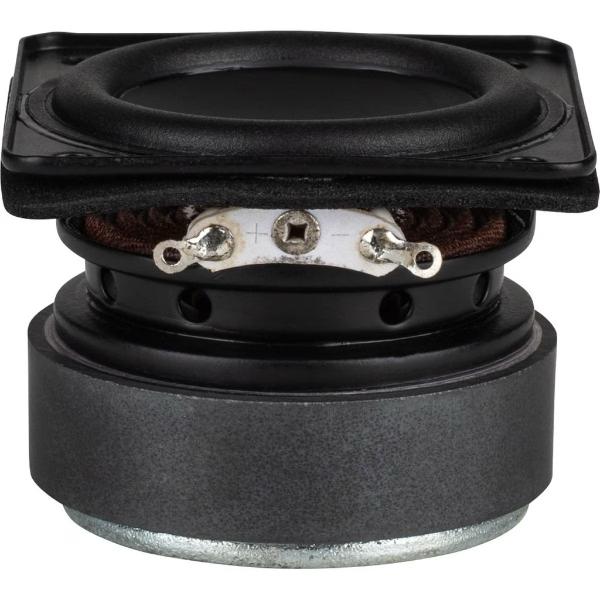

Dayton Audio CE48-4
Rating
DIAM
2"
FS(Hz)
151
VAS(l)
0.068
QTS
0.95
PWR(W)
10
SPL(dB)
75.4
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
151
Vas(l)
0.1
Qts
0.95
Qms
11
Qes
1.04
Bl(Tm)
2.5
Mms(gr)
2
Cms(mm/N)
0.585
Rms(kg/s)
0.164
Le(mH)
0.37
Re(Ohm)
3.5
Sd(sq.mm)
910
Vd(l)
0.001
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
2
Max Power(W.)
10
RMS Power(W.)
5
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.02
Sensitivity(dB) 1-W
75.4
Sensitivity(dB) 2.8-V
79
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
52
Cutout Diameter (mm)
45
Mounting Depth (mm)
34
Magnet Diameter (mm)
45
Optimum Enclosures
Enclosures
BP6P, Vented
