Model

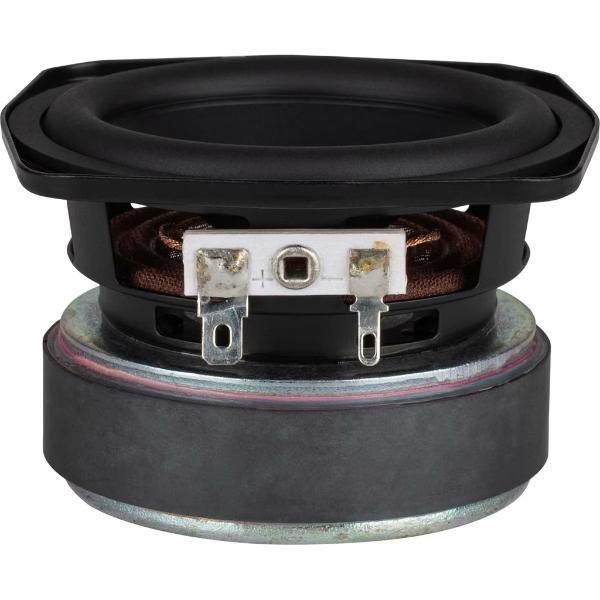

Dayton Audio CE81PF-8
Rating
DIAM
3"
FS(Hz)
97
VAS(l)
0.998
QTS
0.81
PWR(W)
30
SPL(dB)
81.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
97
Vas(l)
1
Qts
0.81
Qms
8.1
Qes
0.9
Bl(Tm)
3.7
Mms(gr)
3
Cms(mm/N)
0.897
Rms(kg/s)
0.226
Le(mH)
0.14
Re(Ohm)
6.7
Sd(sq.mm)
2830
Vd(l)
0.008
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
30
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
81.9
Sensitivity(dB) 2.8-V
82.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
96
Cutout Diameter (mm)
70
Mounting Depth (mm)
51
Magnet Diameter (mm)
70
Optimum Enclosures
Enclosures
BP6P, Vented
