Model

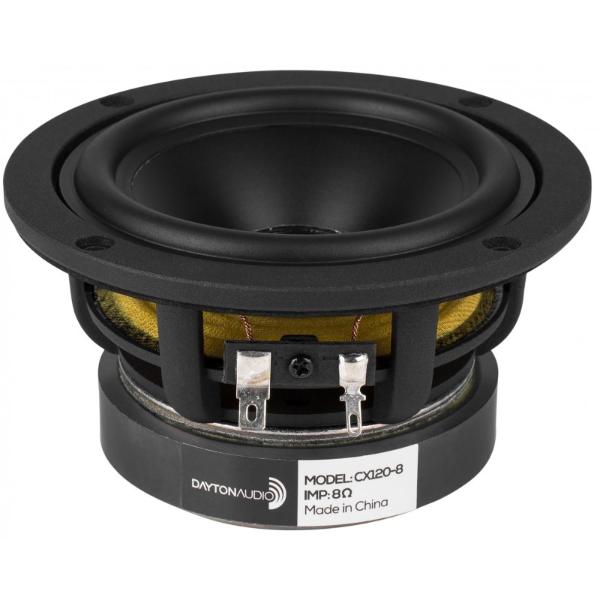

Dayton Audio CX120-8
Rating
DIAM
4"
FS(Hz)
87.5
VAS(l)
3
QTS
0.48
PWR(W)
80
SPL(dB)
87.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
87.5
Vas(l)
3
Qts
0.48
Qms
2.89
Qes
0.57
Bl(Tm)
5.1
Mms(gr)
5
Cms(mm/N)
0.686
Rms(kg/s)
0.917
Le(mH)
0.63
Re(Ohm)
6.2
Sd(sq.mm)
5260
Vd(l)
0.016
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
88.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
120
Cutout Diameter (mm)
98
Mounting Depth (mm)
59
Magnet Diameter (mm)
85
Optimum Enclosures
Enclosures
Vented, BP6
