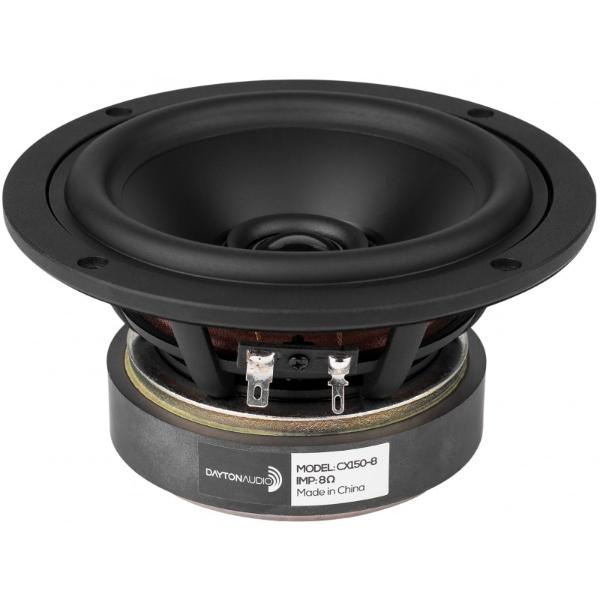

Dayton Audio CX150-8
Dayton Audio CX150-8
Model

Dayton Audio CX150-8

Rating
DIAM
5"
FS(Hz)
63.9
VAS(l)
9.3
QTS
0.46
PWR(W)
160
SPL(dB)
88.7
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
63.9
Vas(l)
9.3
Qts
0.46
Qms
5.38
Qes
0.503
Bl(Tm)
7.3
Cms(mm/N)
0.574
Rms(kg/s)
0.806
Le(mH)
1.03
Mms(gr)
11
Vd(l)
0.054
Sd(sq.mm)
10880
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
6.1

General Parameters

Diameter (inch)
5
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
89.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
152
Cutout Diameter (mm)
126
Mounting Depth (mm)
63
Magnet Diameter (mm)
100

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
