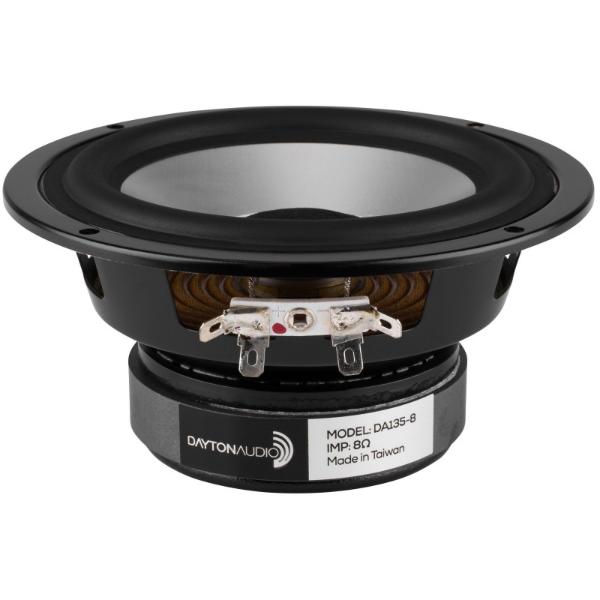

Dayton Audio DA135-8
Dayton Audio DA135-8
Model

Dayton Audio DA135-8

Rating
DIAM
5"
FS(Hz)
56.5
VAS(l)
7.4
QTS
0.54
PWR(W)
60
SPL(dB)
84.8
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
56.5
Vas(l)
7.4
Qts
0.54
Qms
2.6
Qes
0.68
Bl(Tm)
5.3
Cms(mm/N)
0.93
Rms(kg/s)
1.16
Le(mH)
0.97
Mms(gr)
9
Vd(l)
0.022
Sd(sq.mm)
7490
X-max(mm)
3
X-mech(mm)
0
Re(Ohm)
6.4

General Parameters

Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
85.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
135
Cutout Diameter (mm)
111
Mounting Depth (mm)
60
Magnet Diameter (mm)
80

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
