Model

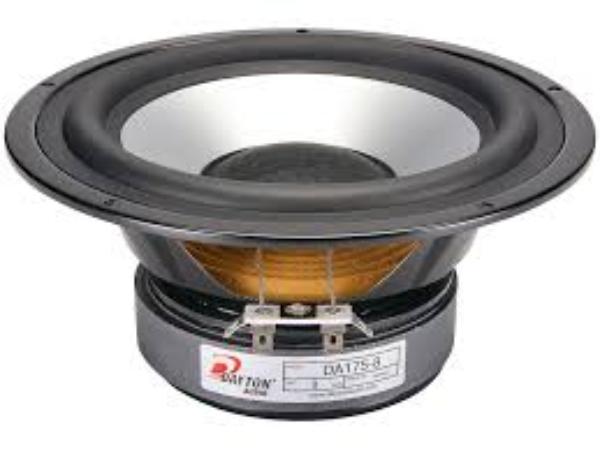

Dayton Audio DA175-8
Rating
DIAM
7"
FS(Hz)
39
VAS(l)
16.3
QTS
0.58
PWR(W)
100
SPL(dB)
83.2
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
16.3
Qts
0.58
Qms
3.31
Qes
0.703
Bl(Tm)
7.2
Mms(gr)
25
Cms(mm/N)
0.662
Rms(kg/s)
1.863
Le(mH)
1.14
Re(Ohm)
5.9
Sd(sq.mm)
13270
Vd(l)
0.056
X-max(mm)
4
X-mech(mm)
9
General Parameters
Diameter (inch)
7
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
83.2
Sensitivity(dB) 2.8-V
85
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
176
Cutout Diameter (mm)
144
Mounting Depth (mm)
81
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
