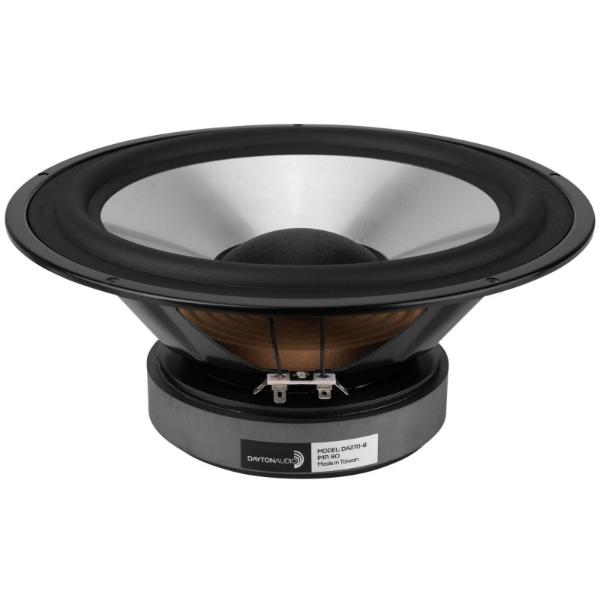

Dayton Audio DA270-8
Dayton Audio DA270-8
Model

Dayton Audio DA270-8

Rating
DIAM
10"
FS(Hz)
27.8
VAS(l)
108.5
QTS
0.43
PWR(W)
160
SPL(dB)
88.1
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
27.8
Vas(l)
108.5
Qts
0.43
Qms
1.95
Qes
0.55
Bl(Tm)
10.1
Cms(mm/N)
0.639
Rms(kg/s)
4.595
Le(mH)
1.2
Mms(gr)
51
Vd(l)
0.211
Sd(sq.mm)
34640
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
6.3

General Parameters

Diameter (inch)
10
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.41
Sensitivity(dB) 1-W
88.1
Sensitivity(dB) 2.8-V
89.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
270
Cutout Diameter (mm)
227
Mounting Depth (mm)
115
Magnet Diameter (mm)
145

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
