Model

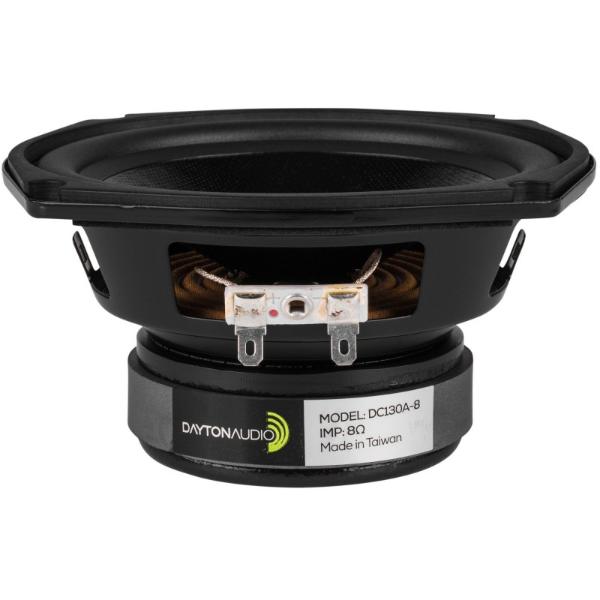

Dayton Audio DC130A-8
Rating
DIAM
5"
FS(Hz)
53.2
VAS(l)
13.9
QTS
0.41
PWR(W)
60
SPL(dB)
88
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53.2
Vas(l)
13.9
Qts
0.41
Qms
1.9
Qes
0.51
Bl(Tm)
5.9
Mms(gr)
9
Cms(mm/N)
0.962
Rms(kg/s)
1.64
Le(mH)
0.75
Re(Ohm)
5.7
Sd(sq.mm)
9160
Vd(l)
0.023
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
89.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
134
Cutout Diameter (mm)
120
Mounting Depth (mm)
70
Magnet Diameter (mm)
80
Optimum Enclosures
Enclosures
Vented, BP6
