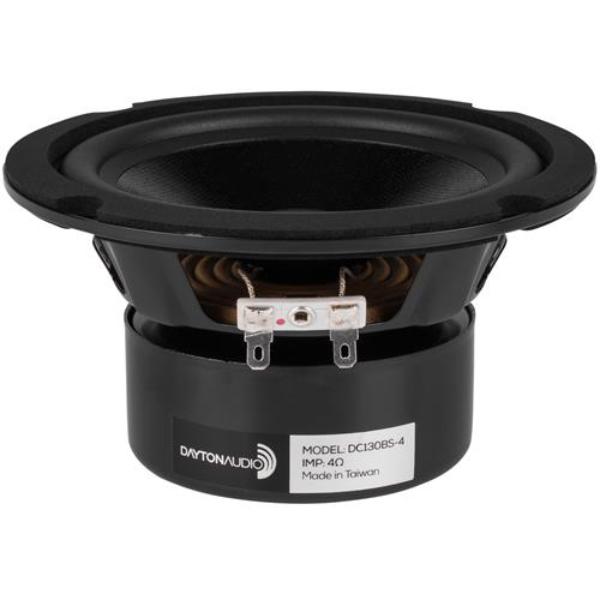

Dayton Audio DC130BS-4
Dayton Audio DC130BS-4
Model

Dayton Audio DC130BS-4

Rating
DIAM
5"
FS(Hz)
51.8
VAS(l)
13.2
QTS
0.35
PWR(W)
60
SPL(dB)
88
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
51.8
Vas(l)
13.2
Qts
0.35
Qms
1.86
Qes
0.44
Bl(Tm)
4.8
Cms(mm/N)
1.08
Rms(kg/s)
1.54
Le(mH)
0.5
Mms(gr)
9
Vd(l)
0.023
Sd(sq.mm)
9283
X-max(mm)
3
X-mech(mm)
0
Re(Ohm)
3.5

General Parameters

Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
91.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
145
Cutout Diameter (mm)
120
Mounting Depth (mm)
71
Magnet Diameter (mm)
88

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
