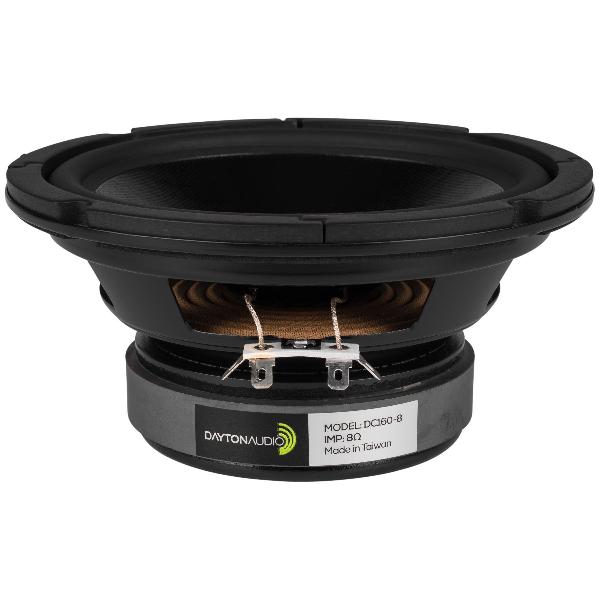

Dayton Audio DC160-8
Dayton Audio DC160-8
Model

Dayton Audio DC160-8

Rating
DIAM
7"
FS(Hz)
35.7
VAS(l)
17.9
QTS
0.34
PWR(W)
100
SPL(dB)
85.2
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
35.7
Vas(l)
17.9
Qts
0.34
Qms
3.46
Qes
0.38
Bl(Tm)
10.7
Cms(mm/N)
0.678
Rms(kg/s)
1.9
Le(mH)
0
Mms(gr)
29
Vd(l)
0.043
Sd(sq.mm)
13480
X-max(mm)
3
X-mech(mm)
0
Re(Ohm)
6.6

General Parameters

Diameter (inch)
7
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
145
Mounting Depth (mm)
74
Magnet Diameter (mm)
100

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
