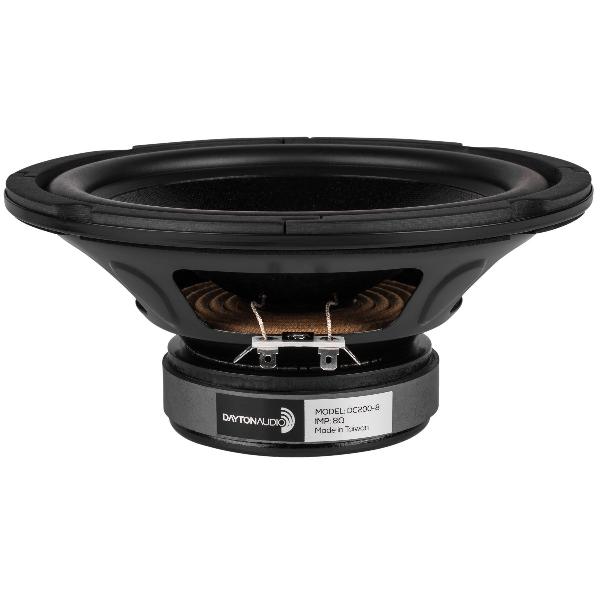

Dayton Audio DC200-8
Dayton Audio DC200-8
Model

Dayton Audio DC200-8

Rating
DIAM
8"
FS(Hz)
30.3
VAS(l)
45.7
QTS
0.42
PWR(W)
120
SPL(dB)
86
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
30.3
Vas(l)
45.7
Qts
0.42
Qms
3.06
Qes
0.49
Bl(Tm)
9.5
Cms(mm/N)
0.77
Rms(kg/s)
2.246
Le(mH)
2.32
Mms(gr)
36
Vd(l)
0.095
Sd(sq.mm)
21120
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
6.4

General Parameters

Diameter (inch)
8
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
87

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
205
Cutout Diameter (mm)
183
Mounting Depth (mm)
84
Magnet Diameter (mm)
100

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
