Model

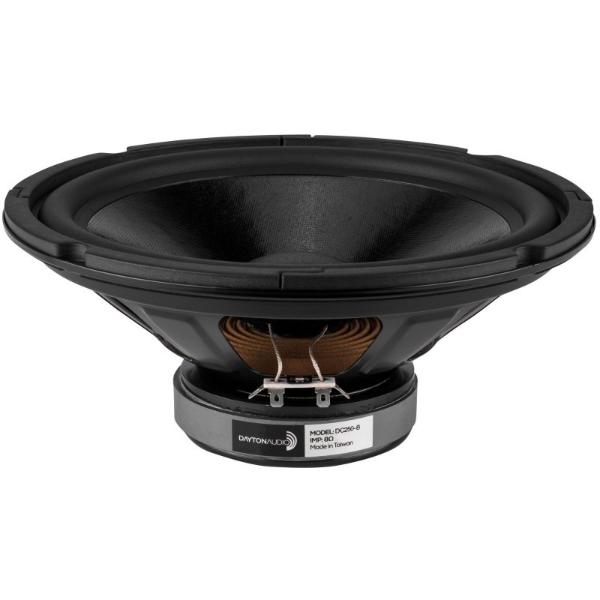

Dayton Audio DC250-8
Rating
DIAM
10"
FS(Hz)
24.9
VAS(l)
104
QTS
0.38
PWR(W)
140
SPL(dB)
87.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
24.9
Vas(l)
104
Qts
0.38
Qms
3.16
Qes
0.44
Bl(Tm)
12.6
Mms(gr)
68
Cms(mm/N)
0.61
Rms(kg/s)
3.34
Le(mH)
2.63
Re(Ohm)
6.6
Sd(sq.mm)
34310
Vd(l)
0.154
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
140
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
88.3
Mounting Information
Speaker Displacement (l)
0.154
Total Diameter (mm)
256
Cutout Diameter (mm)
234
Mounting Depth (mm)
113
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
