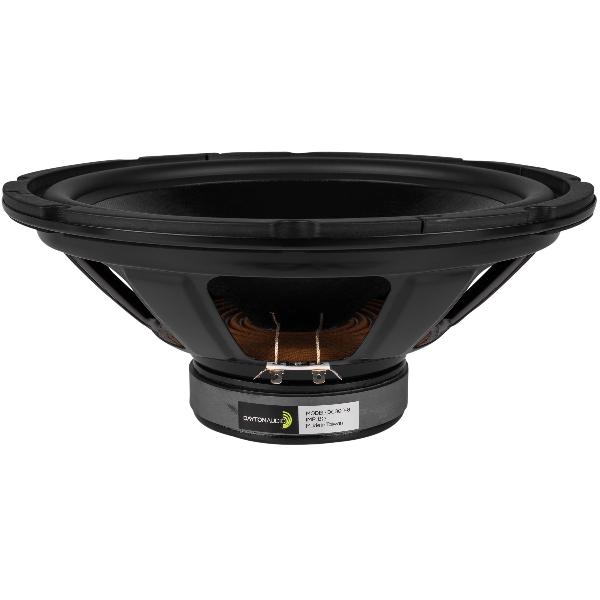

Dayton Audio DC300-8
Dayton Audio DC300-8
Model

Dayton Audio DC300-8

Rating
DIAM
12"
FS(Hz)
22.9
VAS(l)
181
QTS
0.33
PWR(W)
160
SPL(dB)
89.5
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
22.9
Vas(l)
181
Qts
0.33
Qms
3.21
Qes
0.37
Bl(Tm)
16.3
Cms(mm/N)
0.48
Rms(kg/s)
4.514
Le(mH)
2.93
Mms(gr)
101
Vd(l)
0.214
Sd(sq.mm)
49880
X-max(mm)
4
X-mech(mm)
0
Re(Ohm)
6.8

General Parameters

Diameter (inch)
12
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.57
Sensitivity(dB) 1-W
89.5
Sensitivity(dB) 2.8-V
90.2

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
307
Cutout Diameter (mm)
280
Mounting Depth (mm)
120
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
